DTM AP380 Semiautomatic Applicator

18 995,00 kr 23 743,75 kr inkl. moms

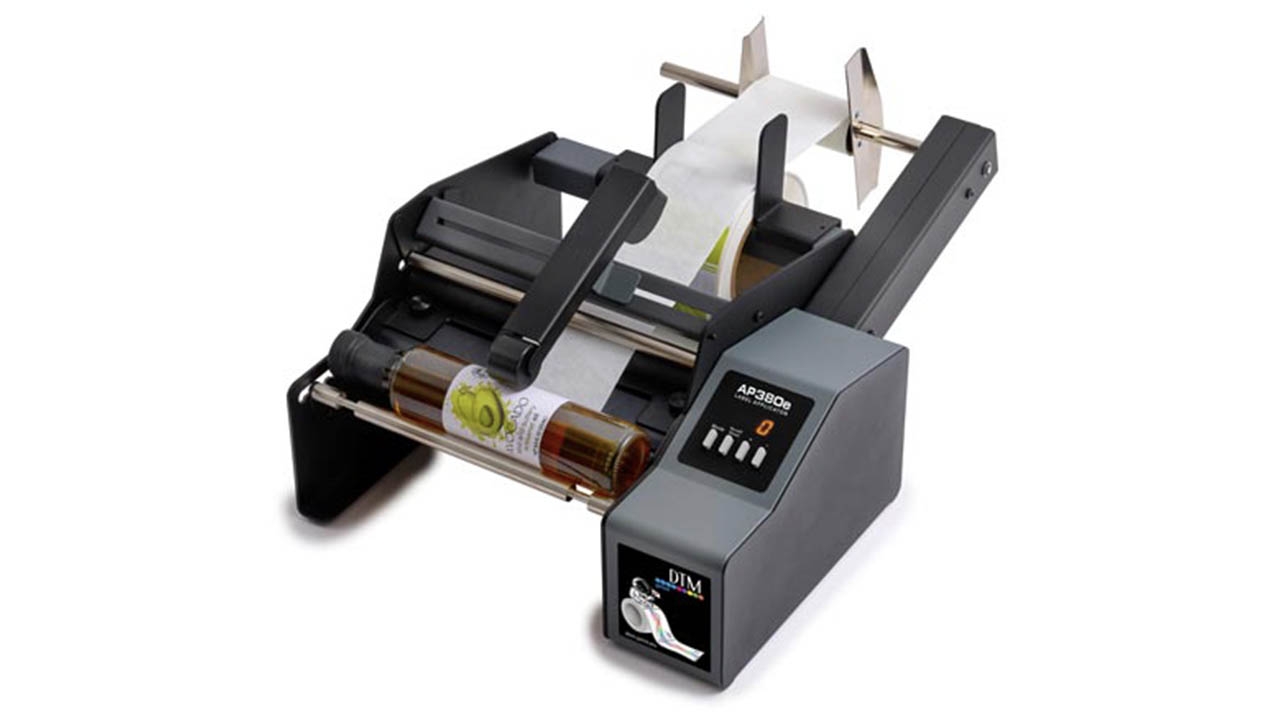

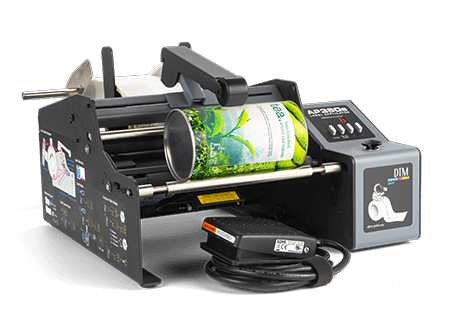

The DTM AP380e is a flexible and user-friendly semi-automatic label applicator that streamlines the labeling of round and conical containers. It combines high precision with fast production and is particularly suitable for small to medium-sized series.

Dimensions – labels

Max label width: approx 152 mm
Max label length: approx 210 mm

Dimensions – products

Diameter: approx. 19-203 mm
Max height/length: up to approx. 254 mm

Performance

Application rate: up to approx. 1,200 labels per hour (depending on operator and product)
Precision: high accuracy thanks to sensor-controlled application

Features and functions

Adjustable rollers for different product sizes
Built-in LED display with counter
Sensor for precise positioning of labels
Foot pedal for easy and efficient operation

Power & connection

Power supply: 100-240 VAC
Frequency: 50/60 Hz

Dimensions & weight

Weight: approx. 12 kg
Compact tabletop model – easy to place in smaller production environments
